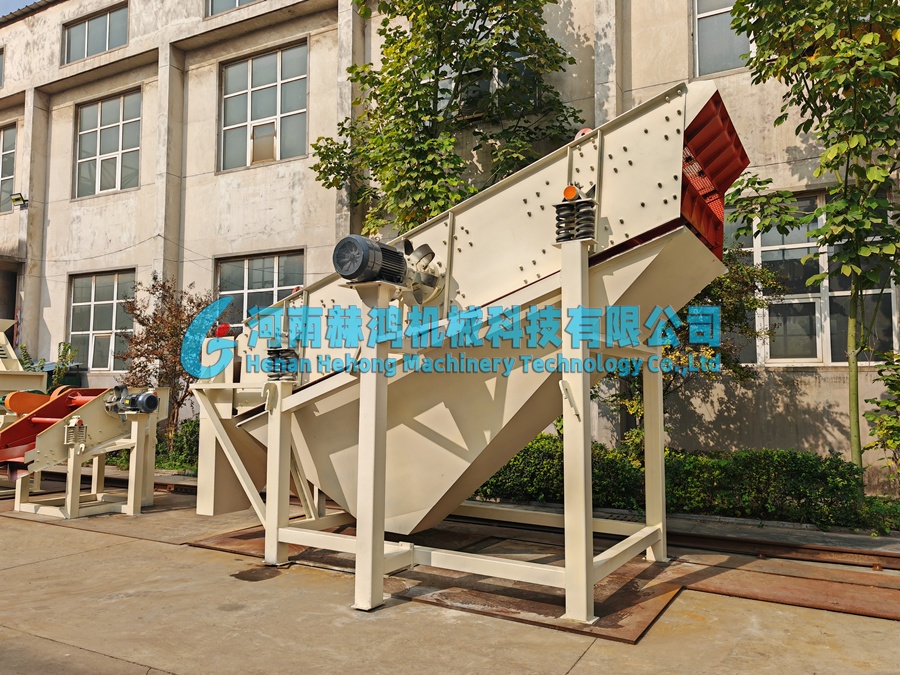

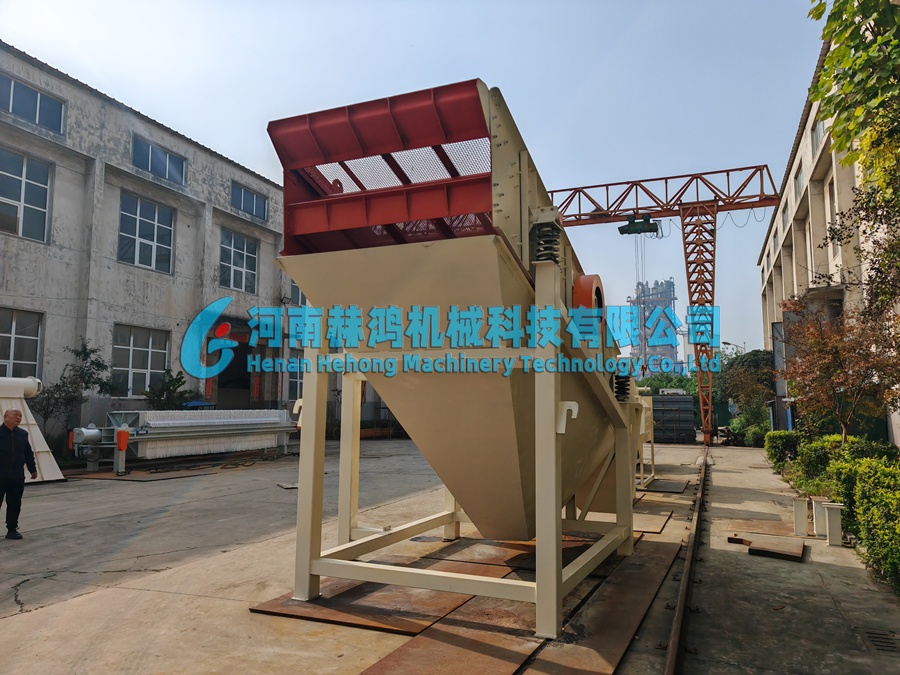

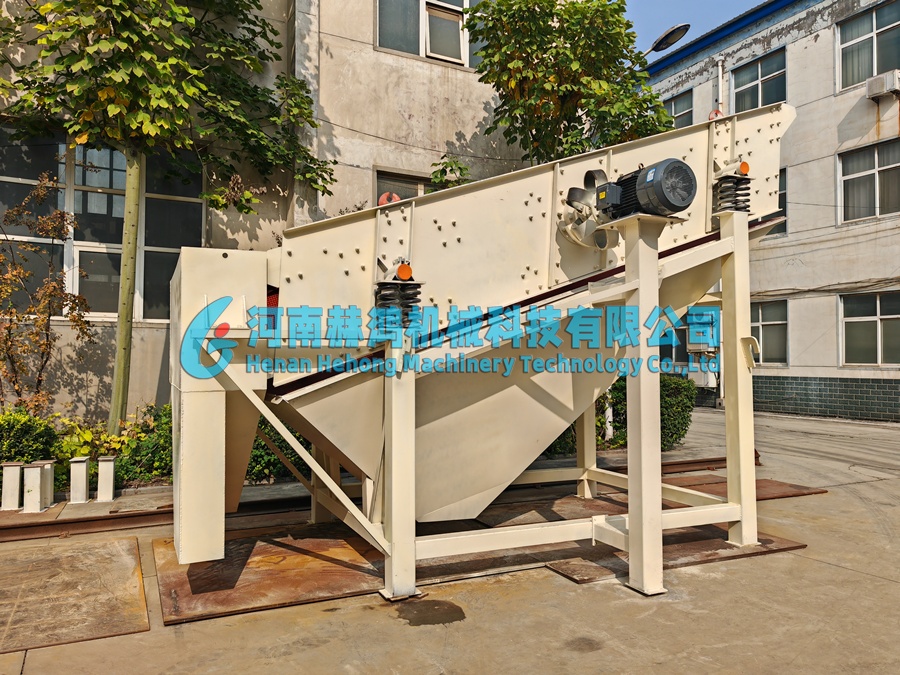

YK Series Circular vibrating Screen

PRODUCT DESCRIPTION

YK series Circular vibrating screen is a screening equipment that uses an exciter with eccentric block to make the screen box vibrate. Its motion track is generally circular or nearly circular. It has the characteristics of simple structure, stable performance and easy maintenance, so it is widely used in mining, building materials, metallurgy, chemical industry and other fields.

Features and advantages

The complete machine is made of high-quality Q235 plate with good durability.
YX series vibrating screen has large processing capacity and high screening efficiency.
A vibration exciter is used as the excitation source, with strong excitation force and stable operation.
The connection between the motor and the vibration exciter adopts a flexible coupling, which has a long service life.

1.Screen box 2.Vibration exciter 3&4. Spring 5&7. Support 6. Motor base 8.Motor 9&10 screen

Technical parameters

Model	Layers	Amplitude (mm)	Vibration frequency (r/min)	Capacity (t/h)	Motor (kW)	Dimensions (L×W×H)(mm)	Weight (t)
YK0824	1	6-10	960	27-150	4	3070×1350×1110	1.7
2YK0824	2	6-10	960	27-150	4	3070×1350×1110	1.8
YK1236	1	6-10	960	35-206	5.5	4270×1750×1240	2.8
2YK1236	2	6-10	970	35-206	5.5	4400×1750×1240	3
3YK1236	3	6-10	970	35-206	7.5	4520×1750×1560	3.5
YK1548	1	6-10	970	44-275	15	5520×2130×1370	4
2YK1548	2	6-10	970	44-275	15	5650×2130×1370	4.5
3YK1548	3	6-10	970	44-275	15	5760×2130×1690	5.5
4YK1548	4	6-10	970	44-275	18.5	5880×2130×2010	6
YK1848	1	6-10	970	56-400	18.5	5650×2430×1370	4.5
2YK1848	2	6-10	970	56-400	18.5	5650×2430×1370	4.8
3YK1848	3	6-10	970	56-400	22	5760×2430×1690	5.7
4YK1848	4	6-10	970	56-400	22	5880×2430×2010	6.4
YK1860	1	6-10	970	56-450	22	6740×2440×1410	5.4
2YK1860	2	6-10	970	56-450	22	6860×2440×1410	5.9
3YK1860	3	6-10	970	56-450	22	6990×2440×1760	7
4YK1860	4	6-10	980	56-450	30	7120×2440×2110	8
YK2160	1	6-10	980	80-720	30	6740×2740×1410	5.6
2YK2160	2	6-10	980	80-720	30	6860×2740×1410	6.1
3YK2160	3	6-10	980	80-720	30	6990×2740×1760	7.2
4YK2160	4	6-10	980	80-720	37	7120×2740×2110	8.5
YK2460	1	6-10	980	100-800	30	6740×3040×1410	5.9
2YK2460	2	6-10	980	100-800	30	6860×3040×1410	6.5
3YK2460	3	6-10	980	100-800	37	6990×3040×1760	8
4YK2460	4	6-10	980	100-800	37	7120×3040×2110	9.1
YK3070	1	6-10	980	180-1600	45	7740×3640×1540	7.5
2YK3070	2	6-10	980	180-1600	45	7860×3640×1540	9.3
3YK3070	3	6-10	980	180-1600	45	7990×3640×1890	12
4YK3070	4	6-10	980	180-1600	55	8120×3640×2240	14.4

No further notice will be given if there are any adjustments to the parameters
