Applicable materials:Iron, scrap,quartz sand, silica sand
Free to visit the factory, the whole teaching style to assist the factory

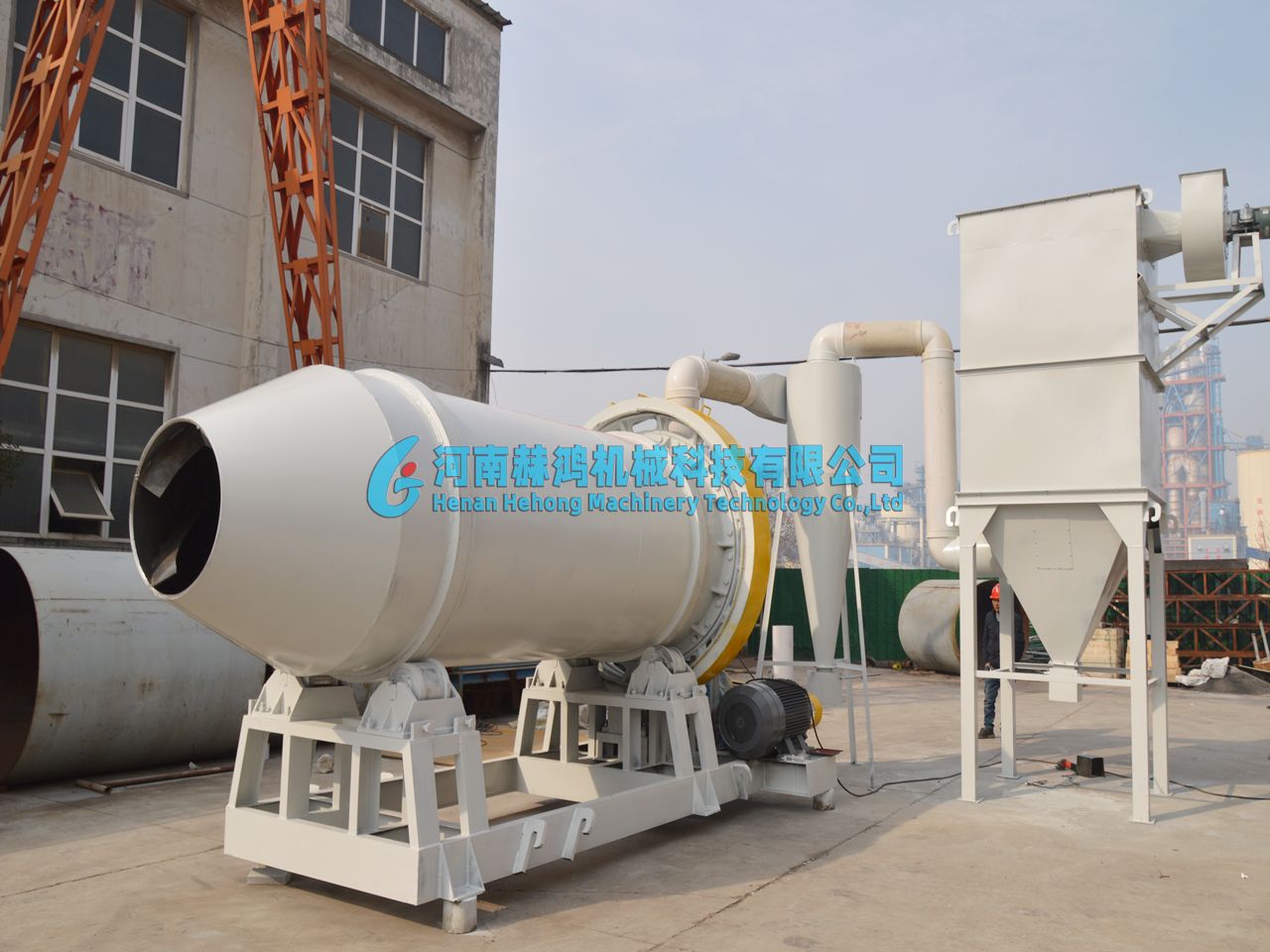

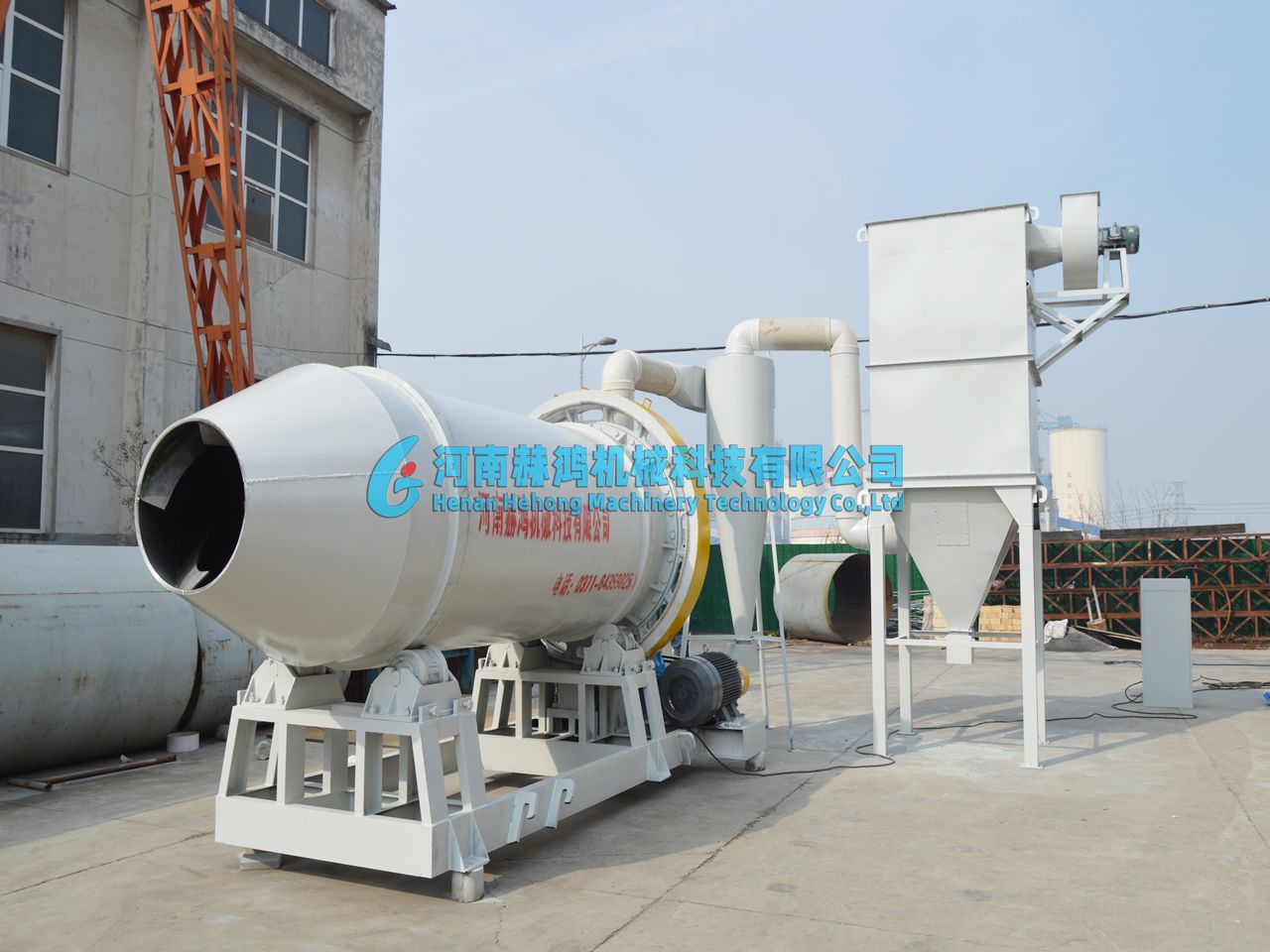

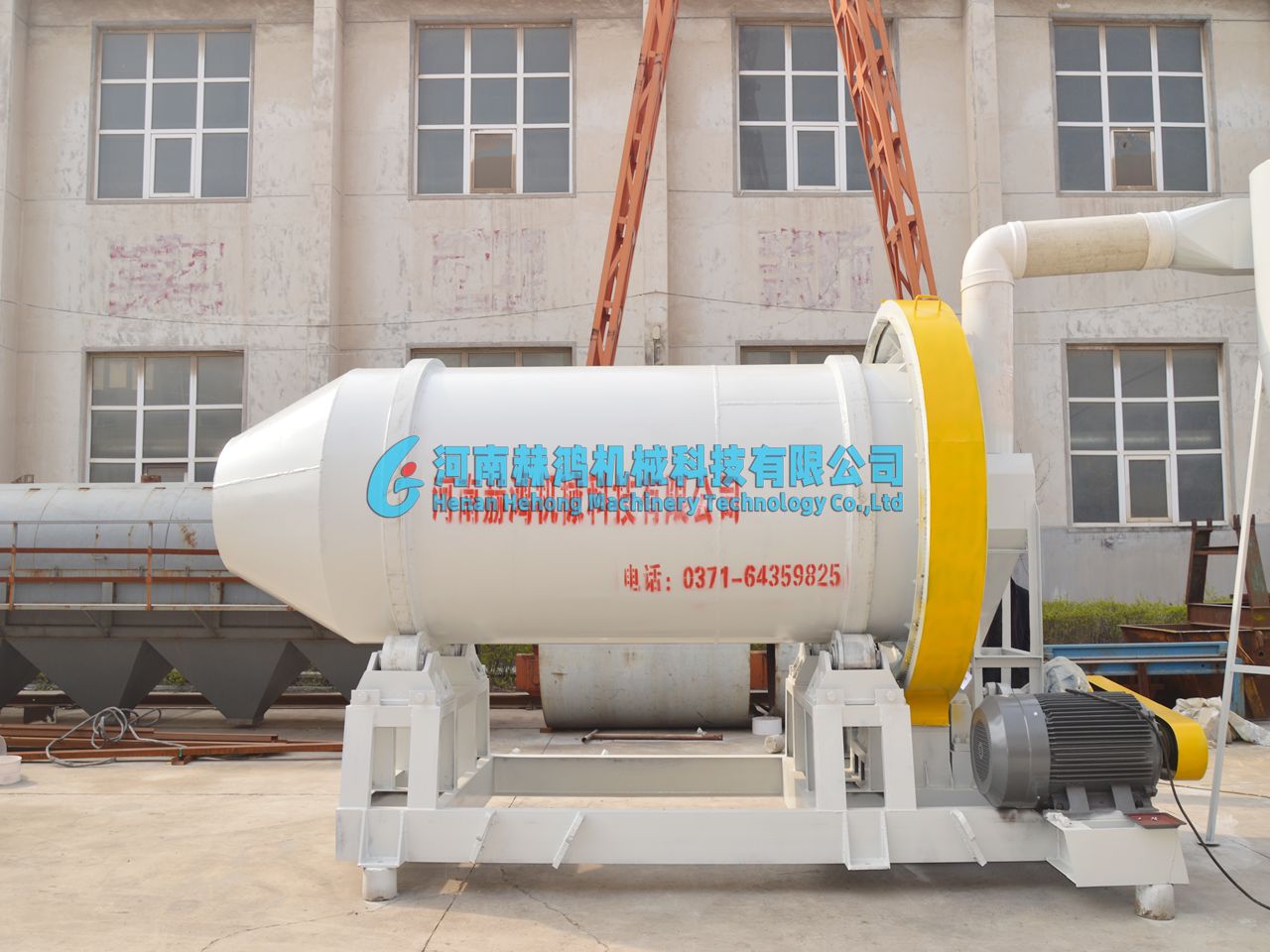

The rotary polishing mill is an efficient grinding equipment. When the mill is running, the materials continuously rub against each other inside the cylinder, which can remove impurities on the surface of the materials and make them more round. Therefore, rotary polishing mill have two main uses: one is to remove impurities from the metal surface, improve the surface smoothness of the metal, and the other is to make non-metallic materials such as silica sand and quartz sand more round.

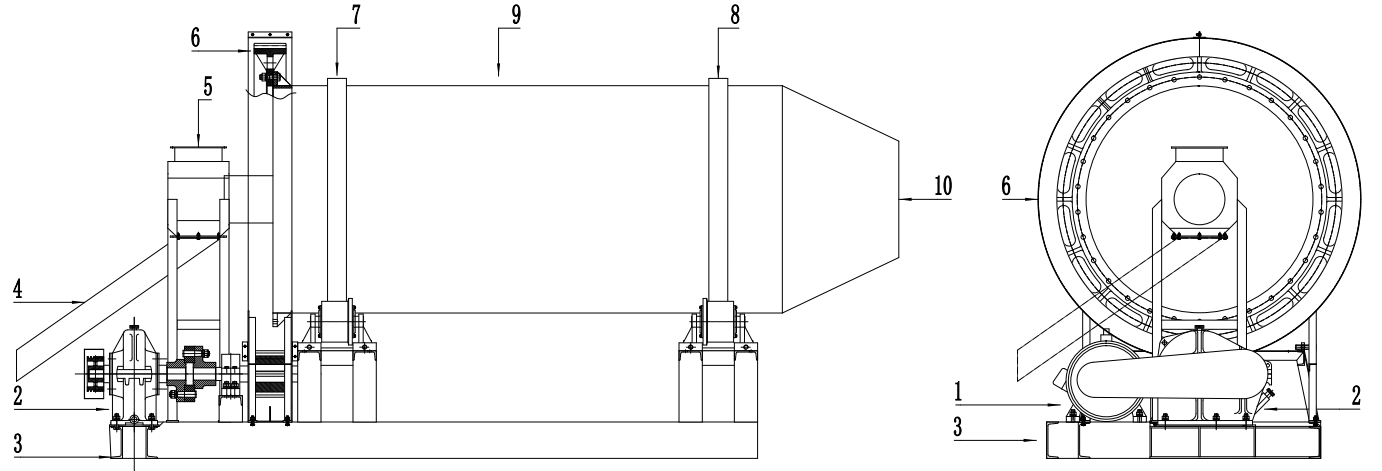

1.Motor 2. Reducer 3. Steel Frame 4. Chute for ash 5. Dust collector connection port 6. Bull Ring 7&8. Roller 9. Cylinder 10.Inlet &outlet| Model | Cylinder(mm) | Cylinder speed （r/min） | Feeding size （mm） | Capacity (t/h) | Power （kw) | Weight （T） | |
| Diameter | Length | ||||||
| PGY0930 | 900 | 3000 | 37 | ≤100 | 0.5-2 | 22 | 6.7 |
| PGY1235 | 1200 | 3500 | 35 | ≤200 | 1-3 | 37 | 9.2 |
| PGY1535 | 1500 | 3500 | 29 | ≤200 | 3-5 | 55 | 13.7 |
| PGY1545 | 1500 | 4500 | 29 | ≤200 | 4-7 | 75 | 15.9 |
| PGY1835 | 1800 | 3500 | 24 | ≤250 | 5-9 | 90 | 23.7 |
| PGY1845 | 1800 | 4500 | 24 | ≤250 | 6-12 | 135 | 27.4 |
| PGY2235 | 2200 | 3500 | 20.7 | ≤300 | 8-15 | 155 | 31.5 |
| PGY2245 | 2200 | 4500 | 20.7 | ≤300 | 10-18 | 180 | 37.8 |
